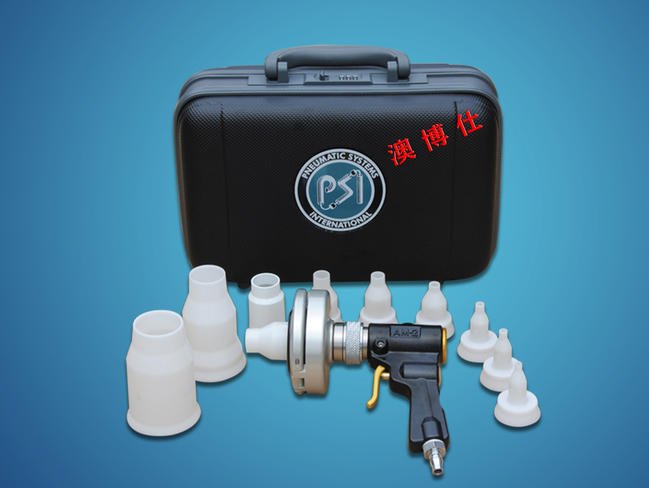

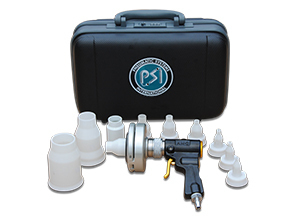

APS TUBE PNEUMATIC CLEANING AM-2 CRIMP KIT

Product Introduction

The AM-2 CRIMP KIT from APS TUBE PNEUMATIC CLEANING is a professional pneumatic pipe cleaning solution built for small-bore industrial pipe pre-commissioning and on-site maintenance. It delivers high-efficiency cleaning for pipes made of a wide range of materials, including rubber hoses, aluminum tubes, copper tubes, stainless steel pipes, iron pipes, plastic pipes, rigid pipes and flexible hoses.

Applicable Pipe Inner Diameter: 6mm – 50mm. Larger bore sizes are available upon custom request.

Industry Applications

1. Machinery Manufacturing: Pipeline cleaning for construction machinery and lifting equipment
2. HVAC & Refrigeration: Servicing condensers, heat exchangers and evaporators
3. Aerospace: Assembly, maintenance and cleaning of hydraulic transmission systems
4. Coal Mining: Cleaning, assembly, maintenance and troubleshooting of hydraulic transmission pipelines for hydraulic supports
5. Marine & Shipping: Cleaning, assembly, maintenance and troubleshooting of fuel pipelines and power transmission systems
6. Food Industry: Residue removal for pre-assembly pipes, raw material and finished product transfer lines, multi-bend semi-liquid pipelines and multi-bend valve piping
7. National Defense & Military: Maintenance and troubleshooting of fuel pressure transmission systems, gun barrels and hydraulic systems for warships, fighter jets, rocket launchers, tanks, artillery and engineering vehicles

Working Principle This system uses dry physical cleaning technology powered by compressed air. The launcher fires a specially engineered foam projectile with a calibrated diameter slightly larger than the pipe inner bore. The projectile travels at high velocity through the pipeline and creates consistent friction against the pipe inner wall to strip away contaminants. It can navigate complex multi-bend piping layouts including 90° elbows, T-joints, annular loops, U-bends and serpentine lines. It efficiently removes trapped water, sludge, welding debris, oil residues and other deposits accumulated on pipe inner surfaces.

Key Advantages of APS TUBE PNEUMATIC CLEANING AM-2 CRIMP KIT

1. Crimp-style quick connection: Designed for crimped pipe ends, enabling fast, secure installation and disassembly on site.
2. Optimized for small-bore tubes: Tailored for precision tubing ranging from 6mm to 50mm inner diameter.
3. Broad material compatibility: Safely cleans both rigid and flexible pipes without scratching or damaging pipe substrates.
4. Excellent performance on complex routing: Reliably passes intricate multi-bend pipelines where conventional liquid flushing fails to achieve thorough cleaning.
5. Chemical-free dry cleaning: No corrosive chemicals required and no wastewater generated, simplifying environmental management.
6. Low compressed air consumption: Works with standard workshop air compressors, no high-power air supply needed.
7. Compact and portable: Lightweight construction for easy transport between workshops, assembly lines and field service sites.
8. Cost-effective consumables: Foam projectiles can be reused under suitable conditions to lower long-term maintenance costs.
